Electric LCD Monitor Lift with TV Lift Mechanism for Conference Room

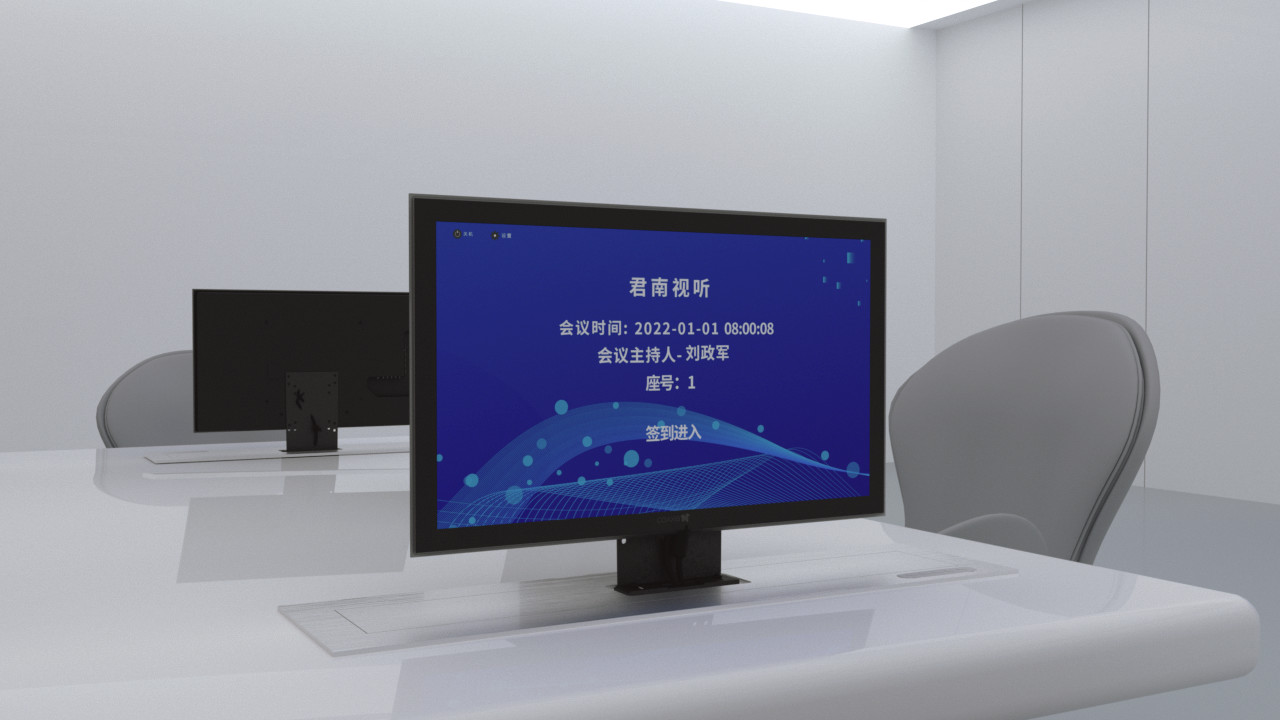

Guangzhou Junnan is a professional China conventional Monitor Lift manufacturer and China conventional Monitor Lift supplier. The conventional Monitor Lift is mainly used in senior executive conference table, built-in high performance touch function, can be configured with microphone, one key lift, front and back adjustment, equipped with anti-pinch function, safe and worry-free, hidden embedded installation is very beautiful.
Our Advantages
- Strict quality control ensures that products meet the highest quality standards.
- Independent development and design team/support processing customization
- The product adopts advanced technology application, humanized design, convenient operation mode
- We focus on innovation, continuous product and service development and innovation, to be able to provide customers with more competitive solutions to meet the growing needs of our customers.
- Our equipment has CCC, CE, ROHS, ISO certification and other certifications, product safety and quality, with export qualifications.

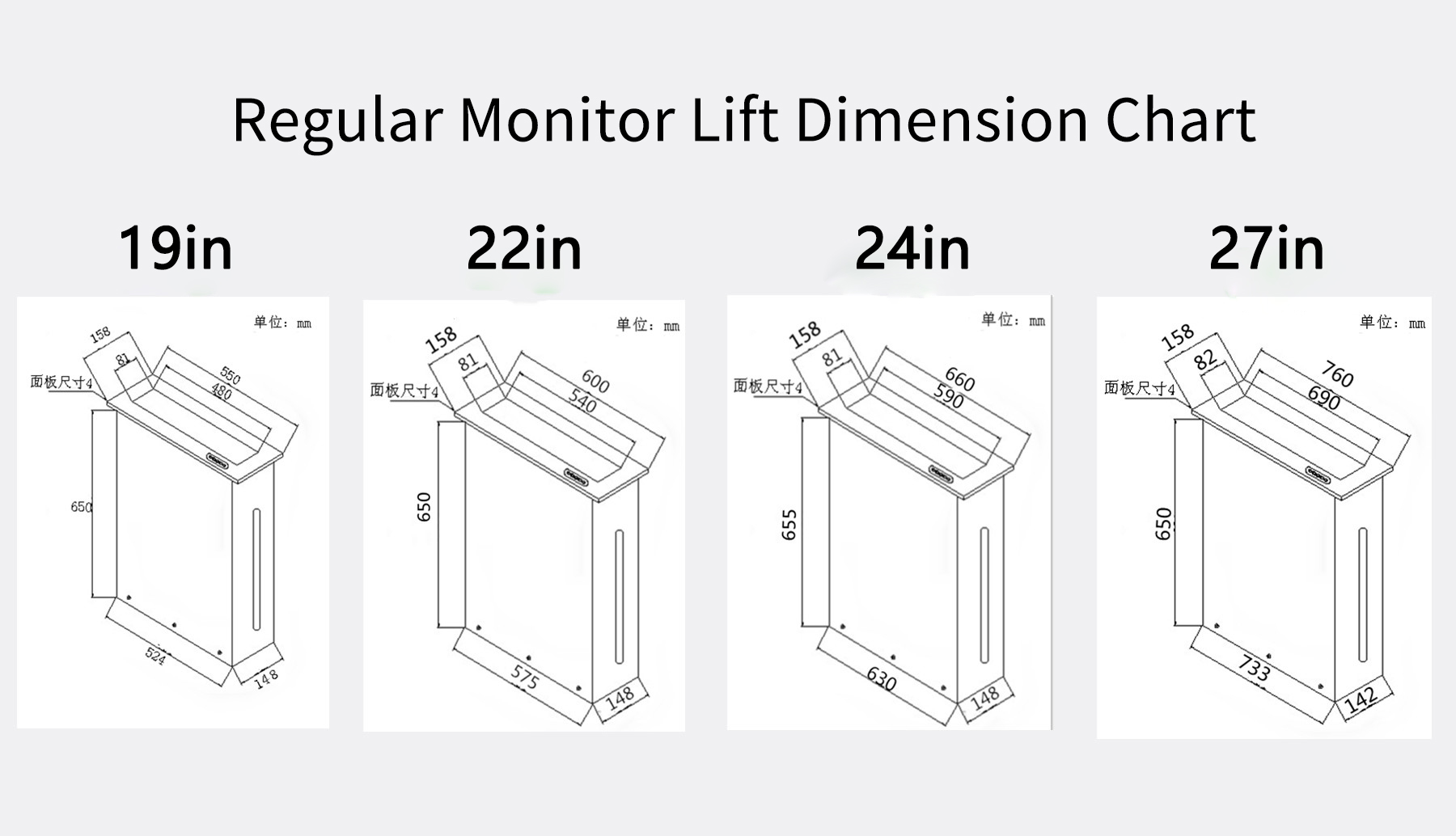

JUNNAN LCD lifter exterior dimensions
| Size: | 19/22/24/27 inch LCD display |
| Material: | Aluminum brushed |
| Chassis: | Carbon steel |
| Color: | Silver/Black |
| Panel size: | 550*158mm
600*158mm
600*158mm
710*158mm |
| Chassis Dimensions: | 525*148*650mm
575*148*650mm 630*148*655mm
650*145*685mm |
| Net Weight: 22kg: | 22kg
24kg
26kg
26kg |
| Control mode: | Central control, remote control, hand control |
| Weight: ≤8.5kg: | ≤8.5kg |
| Elevation angle: ≤15°: | ≤15° |
| Panel keys: | Up / pause / down / forward / backward tilt |
| Chassis interface: | RS232 input and output/power supply/vga |
Installation steps
(1)Determine the installation position of the desktop first, according to the Monitor lift of the elevator chassis in the desktop to open the corresponding hole
(2) Then countersink the lifter panel accordingly to the size of the lifter panel
(3) Be sure to remove the anti-vibration screws before turning on the power.
(4) Put the lifter inside the open hole, and then connect the power to lift 1-3 times to ensure normal operation. Will be connected to the line on / off HDMI, data transmission, VGA input / output power cord) as follows
(5)installation is complete (Note: the possibility that the Desktop Lifting Display can not move: ① battery socket is not plugged in; ② through the controller is powered, you can press the panel button test)
FAQ
1.How many days you need to install the equipment?
Re:The installation time depends on the type and quantity of equipment. The fastest is 1 day, and the longest is three or four days.
2.How long it takes you to provide the designing options for us?
Re:1-2days
3.Do you have any real project pictures of the equipment?
Re:Our pictures are all real cases and objects
4.Can you can design the equipment according to our size?
Re:No problem, we support OEM
5.How do you pack the equipment?
Re:We have strict packaging for equipment with screens. We first fix the equipment with thick foam, then pack it in cartons, and then use wooden frames or wooden pallets for safe transportation.
